YET215X Series Earth Resistance Tester

Short Description:

    YET215X Serise earth resistance tester is a profesional  instrument for testing  earth resistance of electrical equipment  intelligent micro-control chip ,with high precision and high reliability ,this device can be used to measure the grounding resistance value of various power systems ,power quipment ,lightning protection equipment and other grounding devices ,and measure the grounding AC voltage as well .


Product Detail

Product Tags

Products Features Basic function

Adapting LCD Screen with bcaklight display

Auto range switch between measurement of voltage and resistance

Data retention and storage functions(100 Sets of data)

Equipped with lithium battery or powered by 5V/1A  power adapter directly （charging )

Over range indication"OL" appears when over the upper .

Optional Function

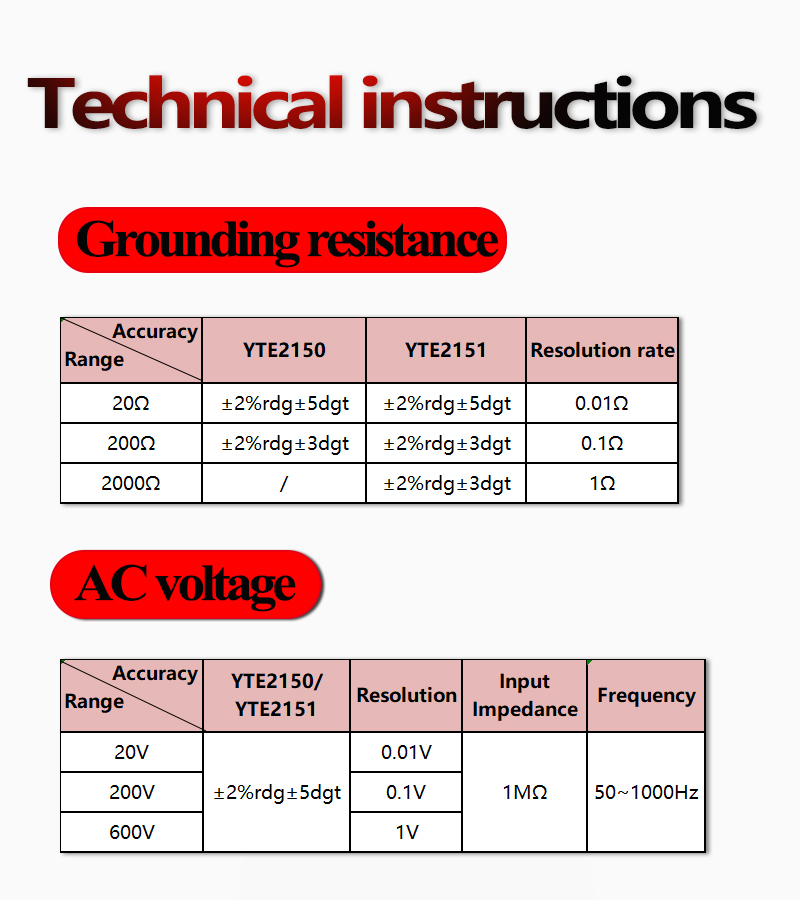

Technical Index

4

General Technical Specifications

power supply :lithium-ion battery (3.7V ,1500mAh) or 5v/1A Power adapter

charging port :Type-c,5V

Display :LCD display

Working environment:O~+40 degree, Relative humidity <75%RH

Size:170mm*105mm*50mm(LWH)

Net weight :0.3kg

Gross weight :2.0kg

Overload protection :ground resistance range 600V AC(10s)

Ground voltage range 750V AC (30S)

Withstand voltage :ACV1500 V Connected to the euipment housing for 1 mins with  no burn

Standard Accessories

 Green testing cable  1PCS  5m

Yellow testing cable 1 psc  10m

Red testing cable  1pcs 15m

Ground spike 2pcs

Type-c USB line 1pcs

5V/1A Charger adapter 1pcs
